(单位:mm)

伺服驱动器

单相 AC100V (50~100W)
R88D-GNA5L-ML2
R88D-GN01L-ML2
单相 AC200V (50~200W)
R88D-GN01H-ML2
R88D-GN02H-ML2

R88M-G, R88D-GN□-ML2 外形尺寸 3

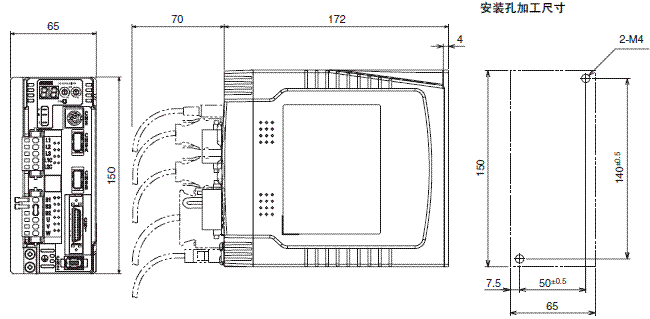

单相 AC100V (200W)
R88D-GN02L-ML2
单相 AC200V (400W)
R88D-GN04H-ML2

R88M-G, R88D-GN□-ML2 外形尺寸 5

单相 AC100V (400W)
R88D-GN04L-ML2
单相/三相 AC200V (750W)
R88D-GN08H-ML2

R88M-G, R88D-GN□-ML2 外形尺寸 7

单相/三相 AC200V (900W~1.5kW)
R88D-GN10H-ML2
R88D-GN15H-ML2

R88M-G, R88D-GN□-ML2 外形尺寸 9

三相 AC200V (2kW)
R88D-GN20H-ML2

R88M-G, R88D-GN□-ML2 外形尺寸 11

三相 AC200V (2kW~5kW)
R88D-GN30H-ML2
R88D-GN50H-ML2

R88M-G, R88D-GN□-ML2 外形尺寸 13

三相 AC200V (7.5kW)
R88D-GN75H-ML2
前面板安装时(使用安装支架)

R88M-G, R88D-GN□-ML2 外形尺寸 15
